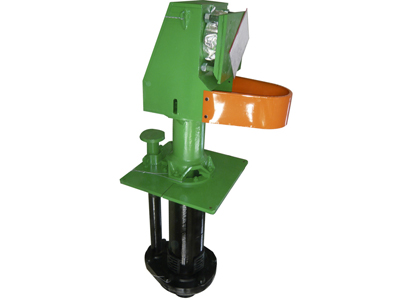

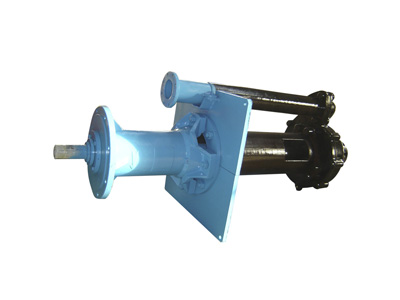

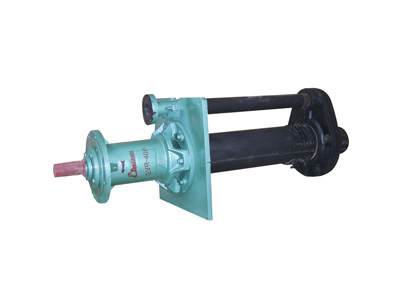

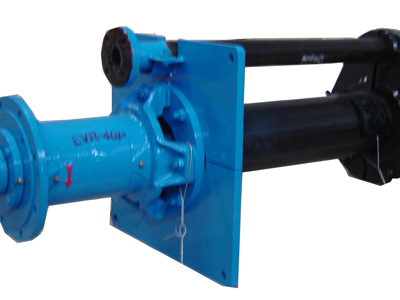

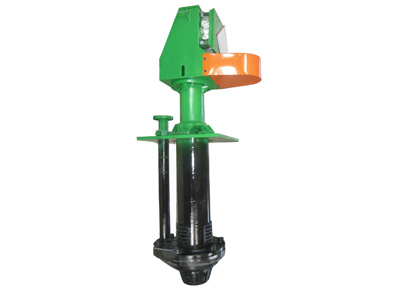

EVR Slurry Pump

1. Doesn’t need any seal and the seal water;
2. Work normally even if the suction volume is not enough;
3. Single casing structure with the advantages of light weight, small volume, easy installation;
4. Anti-corrosive wet parts made of natural rubber;
5. Transmission shaft and suction pipe could be chosen according to liquid surface of the slurry pool;
6. Able to run smoothly under various speeds.

Download

If you want to get quotation， please click

Parameters and Selection

Top efficiency 60%

Model
```
EVR-300T
```
Capacity
```
540-1548 m³/h
```
Head(TDH)
```
5.5-26 m
```
Allowable Max. Power
```
200 kW
```
Speed
```
350-700 r/min
```
NPSH
```
N/A
```

Top efficiency 60%

Model
```
EVR-250T
```
Capacity
```
320-2100 m³/h
```
Head(TDH)
```
7-33 m
```
Allowable Max. Power
```
200 kW
```
Speed
```
400-750 r/min
```
NPSH
```
N/A
```

Top efficiency 64%

Model
```
EVR-200S
```
Capacity
```
189-891 m³/h
```
Head(TDH)
```
6.5-37 m
```
Allowable Max. Power
```
110 kW
```
Speed
```
400-850 r/min
```
NPSH
```
N/A
```

Top efficiency 52%

Model
```
EVR-150S
```
Capacity
```
108-479 m³/h
```
Head(TDH)
```
8.5-40 m
```
Allowable Max. Power
```
110 kW
```
Speed
```
500-1000 r/min
```
NPSH
```
N/A
```

Top efficiency 62%

Model
```
EVR-100R
```
Capacity
```
54-289 m³/h
```
Head(TDH)
```
5-36 m
```
Allowable Max. Power
```
75 kW
```
Speed
```
500-1200 r/min
```
NPSH
```
N/A
```

Top efficiency 60%

Model
```
EVR-65Q
```
Capacity
```
18-114 m³/h
```
Head(TDH)
```
5-31.5 m
```
Allowable Max. Power
```
30 kW
```
Speed
```
750-1500 r/min
```
NPSH
```
N/A
```

Top efficiency 40%

Model
```
EVR-40P
```
Capacity
```
17-43.2 m³/h
```
Head(TDH)
```
4-28.5 m
```
Allowable Max. Power
```
15 kW
```
Speed
```
1000-2200 r/min
```
NPSH
```
N/A
```

Application and Reference

Series EVR slurry pumps are widely used in the mining, coal washing, power plant, metallurgy, petrochemical, building material, dredging, and other industrial departments, etc.

Typical Application:

Iron Ore Dressing Plant
Copper Concentration Plant
Gold Mine Concentration Plant
Molybdenum Concentration Plant
Potash Fertilizer Plant
Other Mineral Processing Plants
Alumina Industry
Coal Washery
Power Plant
Sand Excavation
Building Material Industry
Chemical Industry
Other industries

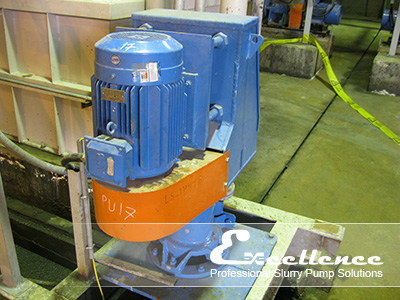

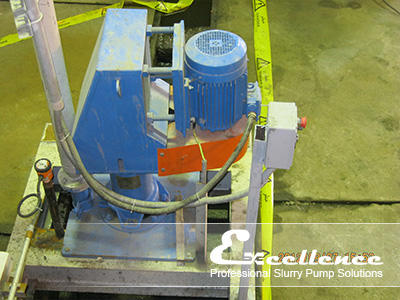

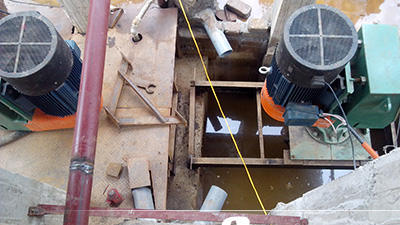

EVR-40P| Copper-molybdenum Mine in Mid-East

EVR-65Q| Copper-molybdenum Mine in Mid-East

EVR-150S| Iron Ore Dressing in Asia

If you want to know more Excellence projects, please click

EVR Slurry Pump Structure

EVR series sump pumps are similar in EVM series. The major difference lies in the material of wet parts. The wet parts of EVR series are made of natural rubber, which are idea for the transportation of strong corrosive slurries without shape edge.

Standard Configuration

If there isn't any specified requirment, Excellence pump provides the following standard configuration:

Shaft seal type:
```
Centrifugal seal with packing seal
```
Discharge direction:
```
Upright
```
Connection type:
```
Customized
```
Pump color:
```
Green
```
Package:
```
Fumigation-free wooden packaging
```

If you want to know more pump standard ,please click here to ask for sales engineer.
