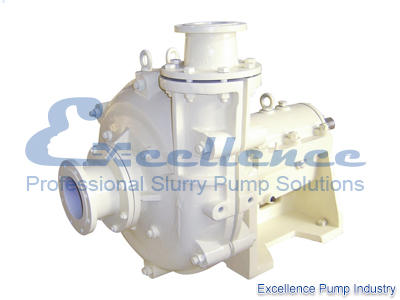

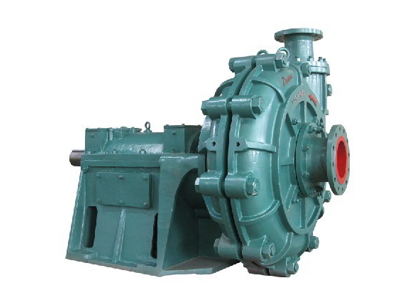

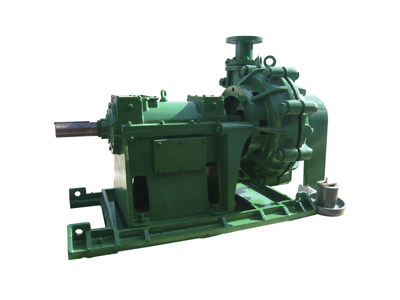

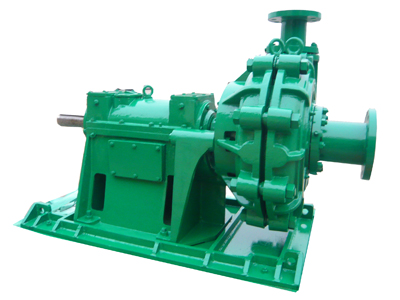

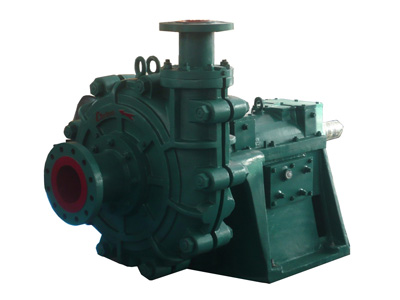

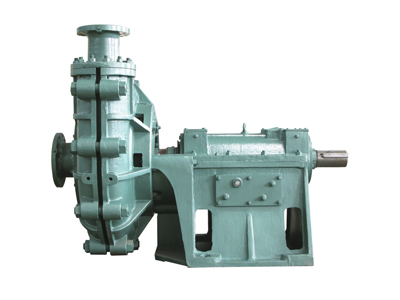

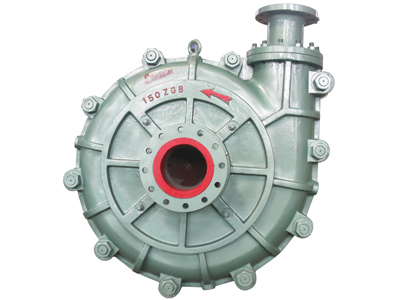

EZG Slurry Pump

1. CAM modern design with optimal hydraulic performance and reliability design ensure long MTBF (mean time between events);
2. The wet parts adopt interchangeable anti-abrasive and anti-corrosive alloy material;
3. The metric bearing is lubricated by oil: scientific lubricating and cooling system ensure that the bearing operates under low temperature;
4. Less power consumption is realized by DC (Direct connection) design. The capacity and head of the pump can be adjusted by altering the outer diameter of impeller;

Parameters and Selection
  • Model
    300EZG
  • Capacity
    171.2-533.3 l/s
  • Head(TDH)
    34.5-93.4 m
  • Allowable Max. Power
    542.8 kW
  • Speed
    740,980 r/min
  • NPSH
    1.4-6.9 m
  • Model
    250EZG
  • Capacity
    99.4-400 l/s
  • Head(TDH)
    36.4-90.1 m
  • Allowable Max. Power
    421.2 kW
  • Speed
    740,980 r/min
  • NPSH
    1.4-7.3 m
  • Model
    200EZG
  • Capacity
    97.9-300 l/s
  • Head(TDH)
    38-94.2 m
  • Allowable Max. Power
    342.9 kW
  • Speed
    740,980 r/min
  • NPSH
    1.1-6.7 m
  • Model
    150EZG
  • Capacity
    64.8-200 l/s
  • Head(TDH)
    35.2-90 m
  • Allowable Max. Power
    215 kW
  • Speed
    740,980 r/min
  • NPSH
    0.6-3.8 m
  • Model
    100EZG
  • Capacity
    30.9-116.7 l/s
  • Head(TDH)
    23.9-91.8 m
  • Allowable Max. Power
    124.9 kW
  • Speed
    980,1480 r/min
  • NPSH
    0.8-6 m
  • Model
    80EZG
  • Capacity
    15.4-56.7 l/s
  • Head(TDH)
    26.1-91.6 m
  • Allowable Max. Power
    73.7 kW
  • Speed
    740,980 r/min
  • NPSH
    0.8-5.2 m
  • Model
    65EZG
  • Capacity
    10.5-31.7 l/s
  • Head(TDH)
    25.4-61 m
  • Allowable Max. Power
    28.8 kW
  • Speed
    980,1480 r/min
  • NPSH
    1.3-4.5 m

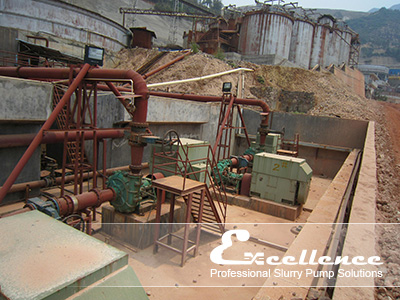

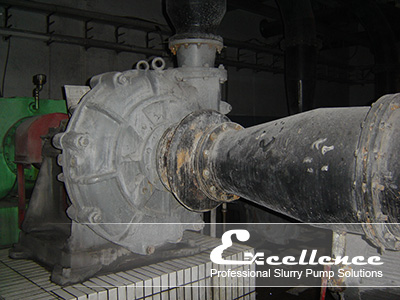

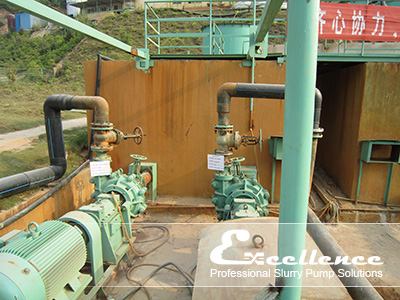

Application and Reference
Series EZG slurry pumps are widely used in the mining, coal washing, power plant, metallurgy, petrochemical, building material, dredging, and other industrial departments, etc.
Typical Application:
  • Iron Ore Dressing Plant
  • Copper Concentration Plant
  • Gold Mine Concentration Plant
  • Molybdenum Concentration Plant
  • Potash Fertilizer Plant
  • Other Mineral Processing Plants
  • Alumina Industry
  • Coal Washery
  • Power Plant
  • Sand Excavation
  • Building Material Industry
  • Chemical Industry
  • Other industries

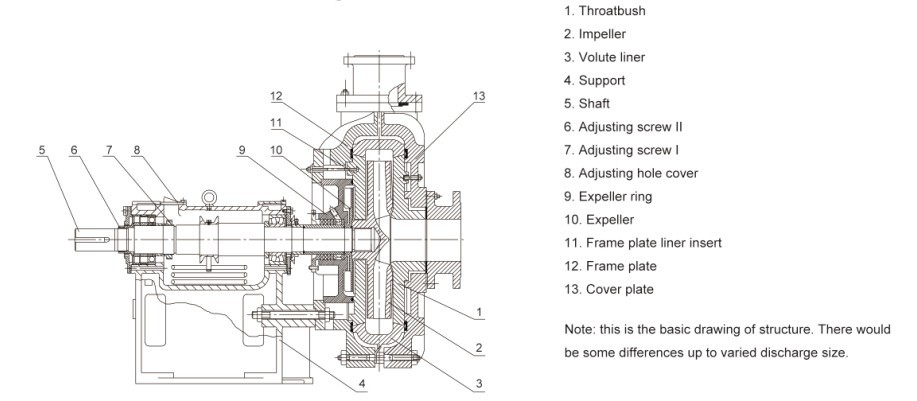

EZG Slurry Pump Structure



Standard Configuration
If there isn't any specified requirment, Excellence pump provides the following standard  configuration:

  • Shaft seal type:
    Centrifugal seal with packing seal
  • Discharge direction:
    Upright
  • Connection type:
    Customized
  • Pump color:
    Green
  • Package:
    Fumigation-free wooden packaging
If you want to know more pump standard ,please click here to ask for sales engineer.
