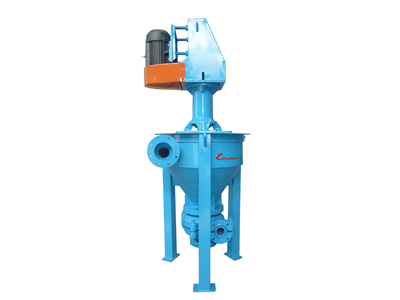

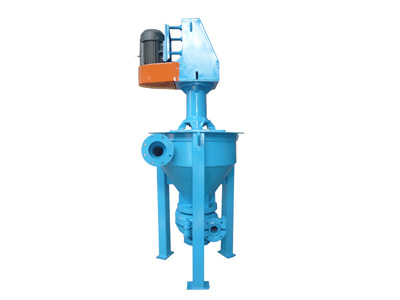

EVF Froth Pump

1. EVF series is suitable for transporting slurry with froth, especially for flotation processing.
2. EVF series can eliminate the froth in the running slurry and work normally even if the feeding slurry is not enough.
3. The feeding suction in the tangent line can accelerate slurry transporting and eliminate part of the froth.
4. The belt and pulley are easy to be altered in order to change the speed according to the working condition.
5. Interchangeable wet parts are made of special alloy, rubber or other wear-resistant materials according to slurry properties.

Download
If you want to get quotation， please click
Parameters and Selection

Top efficiency 55%

  • Model
    EVF-6S
  • Capacity
    55-330 m³/h
  • Head(TDH)
    6-25 m
  • Allowable Max. Power
    75 kW
  • Speed
    350-680 r/min
  • NPSH
    N/A

Top efficiency 55%

  • Model
    EVF-4R
  • Capacity
    15-130 m³/h
  • Head(TDH)
    6-28 m
  • Allowable Max. Power
    40 kW
  • Speed
    500-1050 r/min
  • NPSH
    N/A

Top efficiency 55%

  • Model
    EVF-3Q
  • Capacity
    10-104 m³/h
  • Head(TDH)
    10-28 m
  • Allowable Max. Power
    20 kW
  • Speed
    700-1500 r/min
  • NPSH
    N/A

Top efficiency 45%

  • Model
    EVF-2Q
  • Capacity
    7.2-3.3 m³/h
  • Head(TDH)
    5-30 m
  • Allowable Max. Power
    15 kW
  • Speed
    800-1800 r/min
  • NPSH
    N/A
Application and Reference
Series EVF slurry pumps are widely used in the mining, coal washing, power plant, metallurgy, petrochemical, building material, dredging, and other industrial departments, etc. It is ideal product for the transporting of slurries with lots of froth, especially the slurries in the flotation process.
Typical Application:
  • Iron Ore Dressing Plant
  • Copper Concentration Plant
  • Gold Mine Concentration Plant
  • Molybdenum Concentration Plant
  • Potash Fertilizer Plant
  • Other Mineral Processing Plants
  • Other industries
EVF
EVF
EVF
If you want to know more Excellence projects, please click

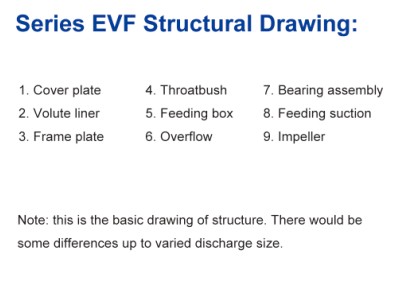

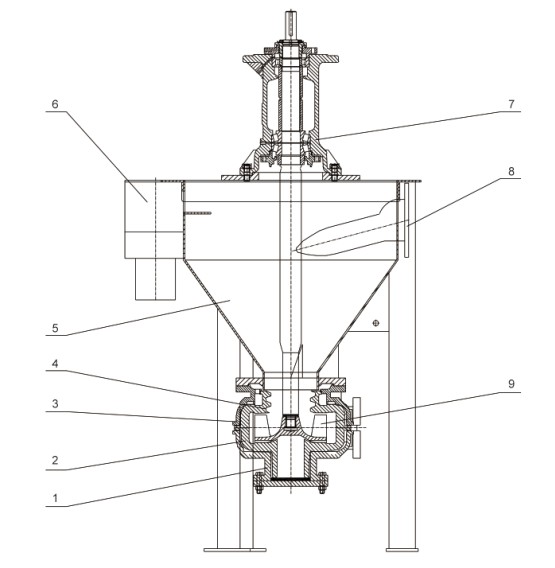

EVF Froth Pump Structure
Standard Configuration
If there isn't any specified requirment, Excellence pump provides the following standard  configuration:

  • Shaft seal type:
    Centrifugal seal with packing seal
  • Discharge direction:
    Upright
  • Connection type:
    Customized
  • Pump color:
    Green
  • Package:
    Fumigation-free wooden packaging
If you want to know more pump standard ,please click here to ask for sales engineer.
